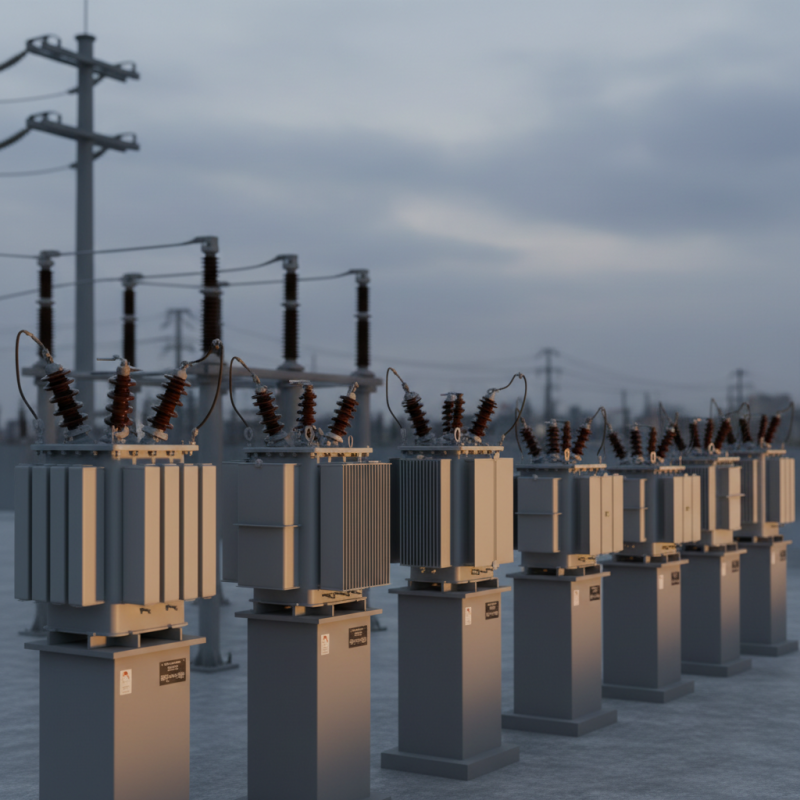

Top 10 Distribution Transformer Types You Should Know?
In the evolving world of electrical engineering, understanding the various types of distribution transformers is crucial. John Smith, a renowned expert in the distribution transformer industry, states, “The right transformer can enhance efficiency and ensure safety in power distribution.” This emphasizes the significance of selecting appropriate transformer types.
Distribution transformers play a pivotal role in delivering electricity from high-voltage transmission lines to lower-voltage systems accessible for residential and commercial use. They come in various designs, each serving unique purposes. Some transformers prioritize energy efficiency, while others focus on reducing noise levels or enhancing durability.
Navigating the myriad options can be daunting. It requires a keen understanding of each type's benefits and potential drawbacks. Missing the right fit could lead to inefficiencies or safety hazards. Therefore, knowledge of distribution transformer types is not merely academic; it’s vital for operational success in energy distribution.
Types of Distribution Transformers: An Overview
Distribution transformers play a crucial role in electrical systems. They are responsible for stepping down high voltage electricity to a usable level for consumers. Several types of distribution transformers exist, each with unique features. Conventional oil-immersed transformers remain popular due to their robustness. These units can withstand harsh conditions and have a proven reliability record.
Another important type is the dry-type transformer. Unlike oil-immersed models, these use air for cooling. They are often favored for indoor installations due to lower fire risk. According to industry reports, dry-type transformers account for about 30% of the market share in urban areas. Their low maintenance needs add to their appeal.
Further, there are shielding transformers designed to reduce electromagnetic interference. These transformers are essential in sensitive applications. However, they may come with a higher initial cost. Market analysis indicates that while these units are effective, users often hesitate over expenses. Overall, understanding the various types of distribution transformers is key for informed decision-making in electrical infrastructure.
Top 10 Distribution Transformer Types You Should Know
This chart represents the different types of distribution transformers based on their usage and popularity in the industry. The data showcases the percentage usage of each transformer type in various applications.
Construction and Design Features of Distribution Transformers
Distribution transformers play a crucial role in electrical distribution systems. Their construction and design directly impact performance and reliability. Typically, these transformers consist of a core, windings, and insulation. The core is often made of silicon steel, which enhances magnetic properties. This allows for efficient energy transfer.
The windings are typically copper or aluminum. Their arrangement varies based on design needs. Cooling systems are also integral. Liquid-filled transformers use oil for cooling, while dry transformers rely on air. Each type has unique advantages. Liquid transformers are generally larger and can handle higher loads. Dry transformers, on the other hand, require less maintenance.
Materials used in construction can affect longevity. Insulation materials play a significant role in electrical safety. It's important to choose the right insulation to avoid failures. Increasingly, environmental considerations influence design choices. Many manufacturers are exploring eco-friendly materials. However, these innovations may require more research. Balancing efficiency with sustainability is a challenge in modern design.
Applications of Different Distribution Transformer Types
When exploring distribution transformers, understanding their applications is essential. Different types of distribution transformers serve various functions across multiple industries. For example, pole-mounted transformers are common in residential areas, providing localized power supply while efficiently handling voltage transformation. Their compact design allows easy installation in tight spaces.
On the other hand, pad-mounted transformers are typically used in commercial settings. These transformers are housed in sturdy enclosures, offering extra protection against environmental elements. They often serve schools, hospitals, and large office buildings, supplying higher capacities and ensuring reliability. Yet, the placement of such units raises questions. Are they adequately safeguarded against unauthorized access?
Substation transformers are critical in step-down applications, connecting transmission lines to distribution networks. They support the grid by reducing high voltages for safe distribution. However, their larger footprint can be a challenge in densely populated areas. It's crucial to balance efficiency with urban planning needs. Understanding these transformers' roles aids in improving power distribution systems while addressing community concerns.
Advantages and Disadvantages of Common Transformer Types

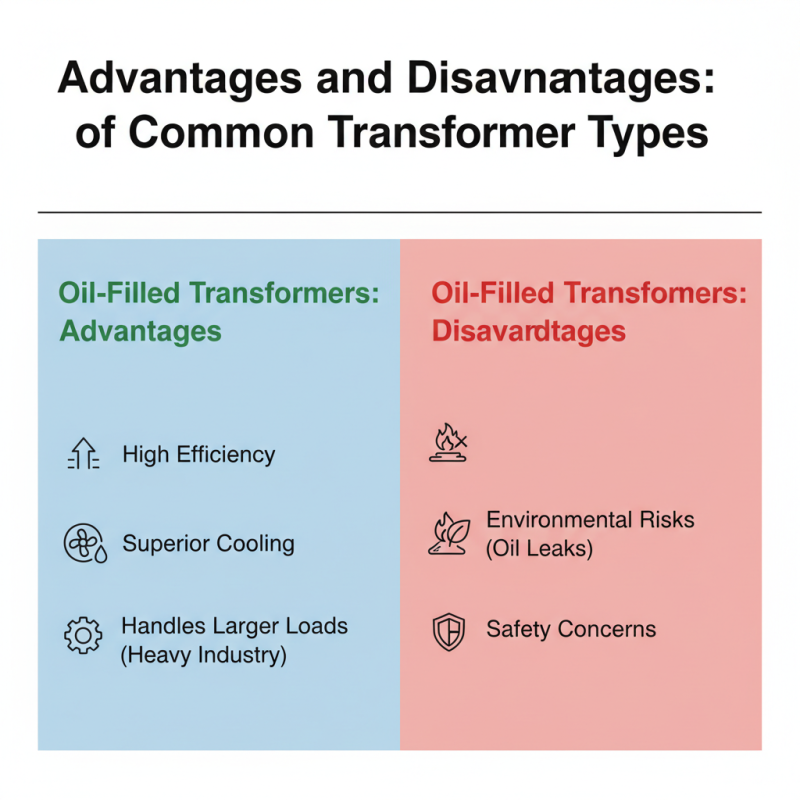

When considering distribution transformers, understanding their advantages and disadvantages is crucial. Oil-filled transformers are popular due to their high efficiency and cooling capability. They can handle larger loads, making them suitable for heavy industrial applications. However, their use involves environmental risks. Oil leaks can lead to severe ecological damage, raising concerns about safety protocols.
Dry-type transformers offer a safer alternative. They are compact and require less maintenance. Their insulation depends on air or resin, reducing fire hazards significantly. However, they tend to have lower efficiency compared to their oil-filled counterparts. In fact, studies indicate that dry-type transformers may lose about 5% more energy than oil-filled types. This factor can affect long-term operating costs for facilities.
Another common type is the cast resin transformer. These units are sturdy and reliable, especially in areas with high moisture or dust levels. Their disadvantage lies in higher initial costs. According to industry reports, while they offer durability, the payback period on investment can extend beyond a decade. Ultimately, understanding the balance of these pros and cons can guide better decision-making in transformer selection.
Future Trends in Distribution Transformer Technology
Future trends in distribution transformer technology are driving innovation across the electrical grid. As the demand for energy increases, efficiency and sustainability are becoming paramount. Smart transformers incorporate digital technology for real-time monitoring. This improves reliability and reduces maintenance costs. Moreover, they can adapt to the grid's demands dynamically.
Tips: Consider the changing landscape of energy production. Integrate renewable sources, such as solar and wind. Doing so will require transformers capable of accommodating fluctuating loads.
Another notable trend is the push for environmentally friendly materials. Traditional fluids used in transformers may pose risks to the environment. New biodegradable fluids emerge as viable alternatives. These products enhance safety and minimize potential environmental impact, while performance remains high.
Tips: Explore the latest technologies and materials. Understanding their impact on the environment can help guide future decisions. Stay informed about emerging practices and avoid complacency in adopting modern solutions.
